TD-R Tandem Tankers are designed for high-use premium farmers and agricultural contractors.

The TD-R Tankers feature a sprung drawbar, four large BKT 750/60 R30.5 Ridemax tyres and a high-speed commercial sprung axle complete with rear steering are all fitted as standard ensuring TD-R tankers can travel anywhere and get there fast. Capacities from 3,000 to 4,000 gallons (13,638 to 18,184 litres) are easily carried to ensure TD-R tankers float across the field and from one job to the next.

TD-R Range (Tandem Axle – Recessed)

Product Axle Pump Capacity
3000 TD-R 750/60 R30.5 BKT Ridemax 11000 13638 litres
3500 TD-R 750/60 R30.5 BKT Ridemax 11000 15911 litres
4000 TD-R 750/60 R30.5 BKT Ridemax 11000 18184 litres

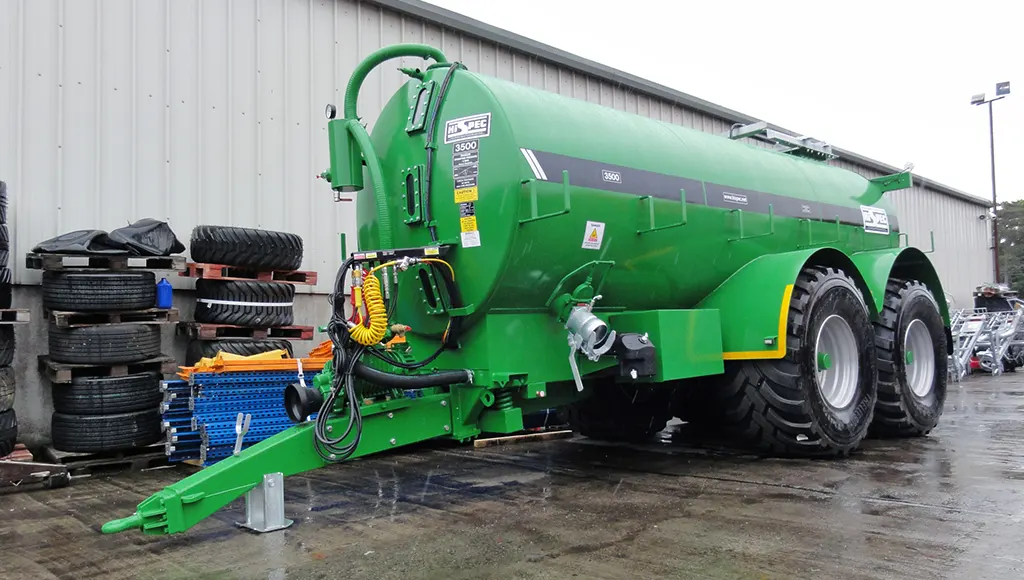

TD-R Tanker

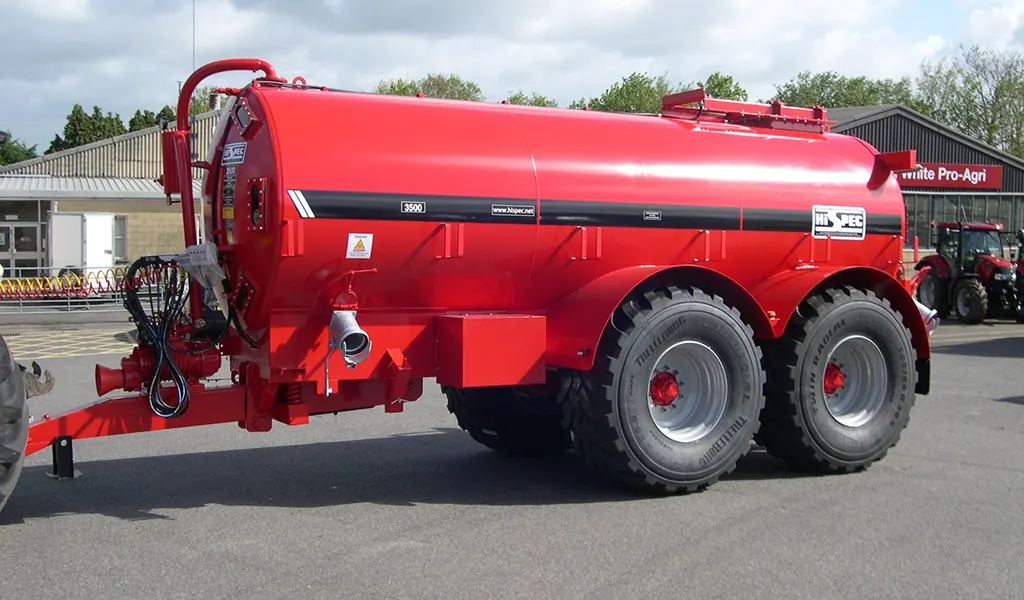

TD-R Tanker

TD-R tankers are particularly adept where farmers and contractors want to overcome all obstacles. TD-R tankers have the wheels recessed into the tanker to keep the width of the tankers as narrow as possible, whilst also providing maximum tyre-to-ground coverage. The barrel of the TD-R model is made longer than the TD-S to allow for the wheel arches, and this barrel is fully supported to ensure a smooth ride. TD-R models are fitted with a sprung bogie complete with rear steer for manoeuvrability with these larger tankers. The bogie axle responds exceptionally well to rapid changes in ground contours, and the rear steering aids turning and reduces tyre wear.

Jurop Pump

A Jurop 11000-litre vacuum pump is fitted as standard across the TD-R range. Jurop is a high-quality pump designed and manufactured in a state-of-the-art factory in Italy. As a result, jurop pumps are recognised as the fastest and most powerful vacuum pumps available today. Each pump is assembled according to Jurop’s methodical standards and is carefully tested and checked. PTO-driven as standard, Jurop pumps provide the most efficient method of filling or emptying your slurry tank.

Jurop pumps have a worldwide reputation for quality and minimal maintenance. Parts and services are available locally from your nearest HiSpec dealer, and the premium build of Jurop pumps ensures an extremely long working life. Additional pump improvement options can be viewed on our Options page.

Tyres

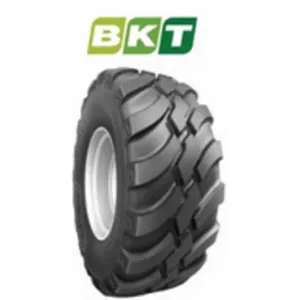

TD-R tankers are fitted as standard on 750/60 R30.5 BKT FL693M Ridemax tyres to suit intensive road usage (75% road, 25% field). All tyre options offer high-speed indexes, which stand for higher speeds when travelling on the road leading to significant time savings. In addition, the low rolling resistance contributes to less fuel consumption. The large tyres also have the added benefit of travelling quickly over land with minimal compaction.
750/60 R30.5 BKT FL630

New Feature: Parabolic Sprung Axle

TD-R tankers are fitted on a parabolic high-speed tandem axle complete with rear steering. The parabolic axle is welded along the entire underside of the chassis for maximum strength. The axle is particularly suited for intensive road usage as stresses and strains are transmitted along a greater distance than a conventional bogie pivot. The suspension is under-slung to reduce the centre of gravity and increase stability. Axle spacings are positioned at 1,820mm to accommodate the large 30.5 wheels. 420×180 hydraulic brakes are provided with air over hydraulic an optional extra to further improve braking capacity.

New Feature: Chassis

TD-R tankers are fully supported by a unique fold chassis. The chassis is folded twice to support the barrel along four key-lines for its entire length. This ensures that the weight of the tanker is distributed evenly to the axle. The chassis is also fitted with internal reinforcement to cope with any additional stresses placed upon these high-performance tankers. For improved comfort, reinforced baffles are fitted internally at staggered heights to prevent surging.

Additional Features

All TD-R tankers are fitted with the following features as standard:
• Swivel hitchSprung drawbar
• Parking brake
• Jurop 11000 litre vacuum pump
• Manual pump changeover
• PTO
• Syphon protection tank
• Anti-implosion rings
• Pressure relief valve
• Collared dished ends
• 6mm British steel
• 3″ sight glass (x2)
• Internal baffles
• 6″ galvanised quick attach (x1)
• 6″ blanked fill point (x3)
• 6″ hose carriers (x1)
• 6″ x 15′ reinforced suction hose (x1)
• LED road lights (x1)
• 2″ wash-down adapter
• 600mm hinged galvanised rear access point
• Non-return hydraulic valve
• Low trajectory splash-plate
• Tandem sprung commercial axle c/w rear steering.
• 420×180 hydraulic brakes
• 750/60 R30.5 BKT FL693M Ridemax tyres
• Built-in round mudguards
• Hi-Spec red paint finish

slurry tankers TD-R Tankers

Model Tyres Pump Width A Length B Height C Diameter D Length L Weight
Litres mm mm mm mm mm kg
3000 TD-R 750/60 R30.5 BKT FL693 11000 2850 8775 3200 1866 5960 6550
3500 TD-R 750/60 R30.5 BKT FL693 11000 2850 9575 3200 1866 6000 6750
4000 TD-R 750/60 R30.5 BKT FL693 11000 2850 8500 3200 1993 5660 7050

TD-R Specification

Product Axle Commercial Brake Steering
3000 TD-R 150 x 150 Yes 420 x 180 Yes
3500 TD-R 150 x 150 Yes 420 x 180 Yes
4000 TD-R 150 x 150 Yes 420 x 180 Yes
