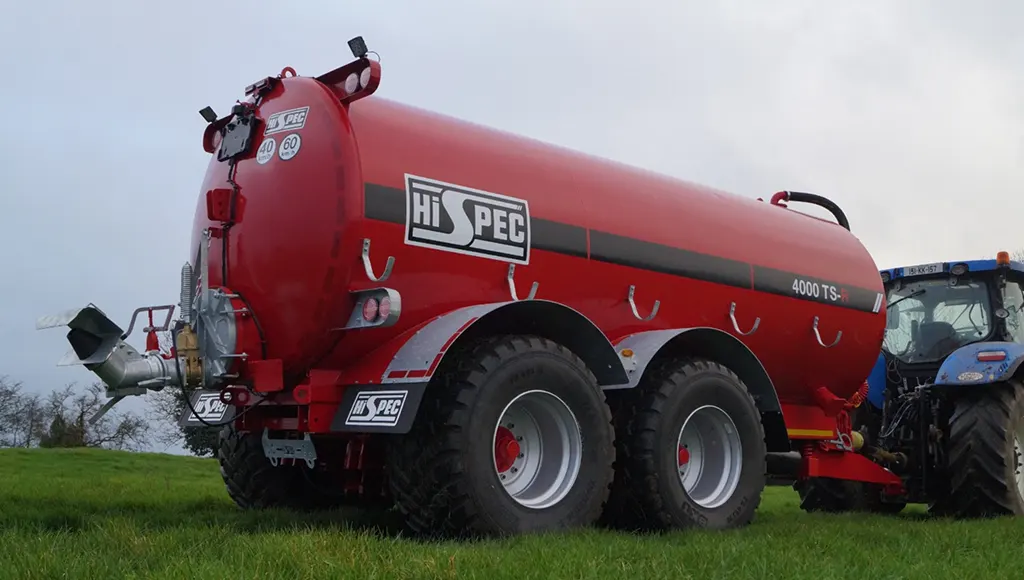

The TS-R is an upgraded version of the TD-S. Due to a specially lowered chassis and semi-recessed barrel, we are able to manufacture tandems lower than ever before.

The TS-R is built on a narrower parabolic axle than the TD-S. This reduced axle width immediately allows us to save over 150mm overall compared to a TD-S. The TS-R is fitted with standard on 710/50 R26.5 tyres, and the reduced width makes the TS-R ideal for road conditions. The specially lowered chassis reduces the height by 150mm compared to a TD-S. This reduced height allows the TS-R to follow easier behind the tractor and reduces the risks from overhanging branches.

TS-R Range (Tandem Semi – Recessed)

3000 TS-R
3500 TS-R
4000 TS-R
TS-R Tanker
TS-R Tanker

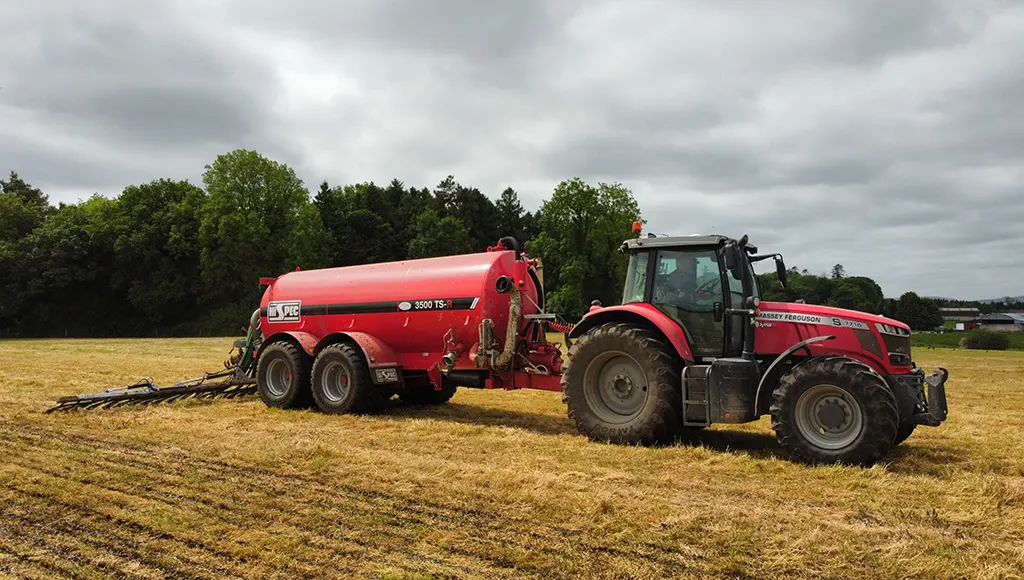

The TS-R gives much more flexibility and peace of mind in a smaller frame. The narrower overall width and reduced height allows the TS-R to travel easily over land. The large footprint tyres spread the weight evenly, and the rear steering as standard allows the TS-R to follow well.

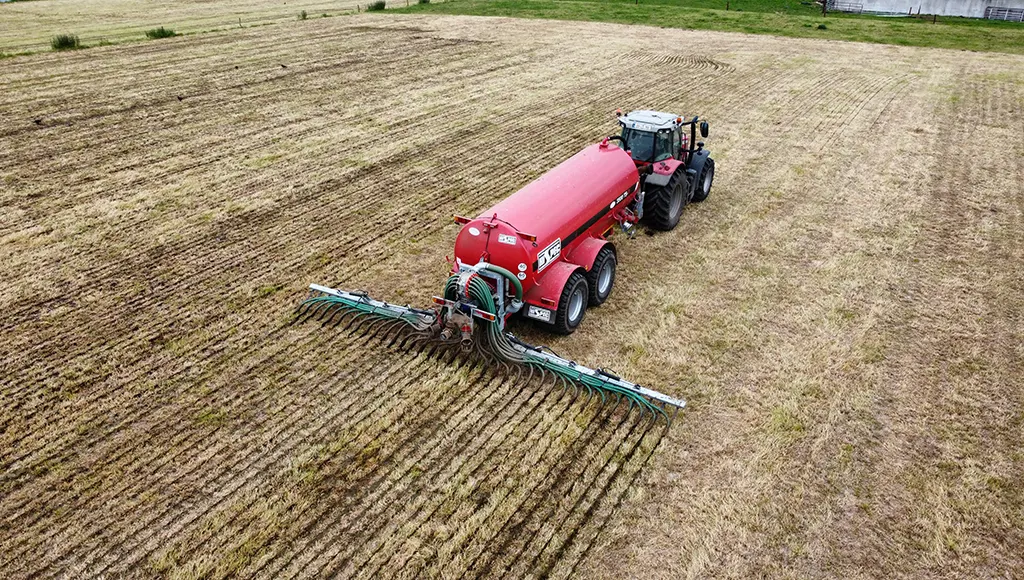

Internal baffles and supports are provided across the semi-recessed mudguards for strength. The full length chassis has additional bracing during manufacturing to cover any additional strain from an applicator.

The TS-R is a premium upgrade from the TD-S and ensures the operator has improved control, stability, and comfort while also ensuring less damage to the ground.

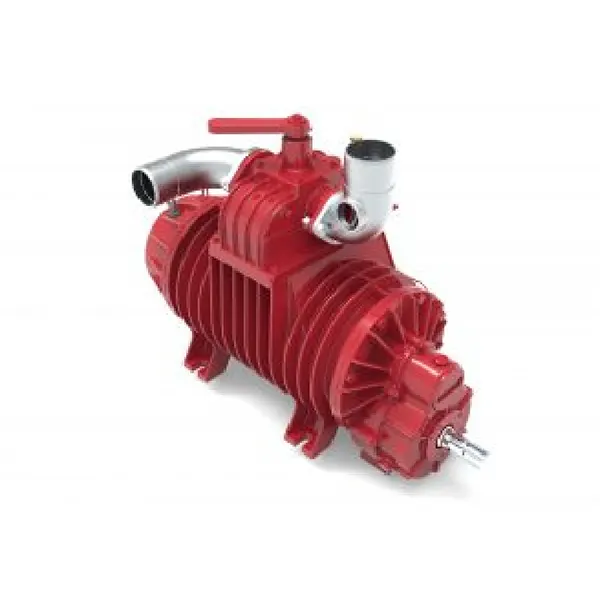

Jurop Pump

Jurop vacuum pump is fitted as standard across the TS-R range. Jurop is a high-quality pump designed and manufactured in a state-of-the-art factory in Italy. As a result, jurop pumps are recognised as the fastest and most powerful vacuum pumps available today. Each pump is assembled according to Jurop’s methodical standards and is carefully tested and checked. PTO-driven as standard, Jurop pumps provide the most efficient method of filling or emptying your slurry tank.

Jurop pumps have a worldwide reputation for quality and minimal maintenance. Parts and services are available locally from your nearest HiSpec dealer, and the premium build of Jurop pumps ensures an extremely long working life. Additional pump improvement options can be viewed on our Options page.

Tyres

We have a wide range of options for field and road use. The TS-R is fitted with standard 710/50 R26.5 tyres, and the reduced width makes the TS-R ideal for road conditions. The larger 26.5 sizes are becoming more popular as they offer lower rolling resistance, reduced wear and improved control. The speed index classes of the tyres stand for higher speeds when travelling on the road leading to significant time savings. In addition, the low rolling resistance contributes to less fuel consumption.

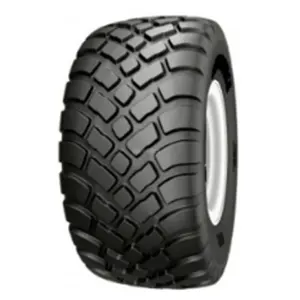

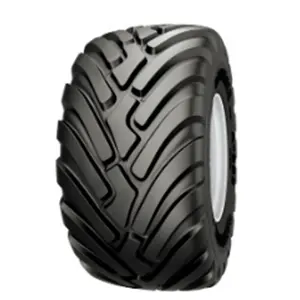

710/50 R26.5 ALLIANCE 885 710/50 R26.5 ALLIANCE 882
732 (29”) 1400 (55”) 727 (29”) 1383 (55”)

Additional Features

All TS-R tankers are fitted with the following features as standard:
• Swivel hitch
• Sprung drawbar
• Parking brake
• Jurop vacuum pump
• Manual pump changeover
• PTO
• Syphon protection tank
• Anti-implosion rings
• Pressure relief valve
• Collared dished ends
• 6mm British steel
• 3″ sight glass (x2)
• Internal baffles
• 6″ galvanised quick attach (x1)
• 6″ blanked fill point (x3)
• 6″ hose carriers (x1)
• 6″ x 15′ reinforced suction hose (x1)
• LED road lights (x1)
• 2″ wash-down adapter
• 600mm hinged galvanised rear access point
• Non-return hydraulic valve
• Low trajectory splash-plate
• Tandem sprung commercial axle.
• Rear steering (2600 TD-S & above)
• 420×180 hydraulic brakes
• 560/60-22.5 BKT FL630 tyres
• Mudguards
• HiSpec red paint finish

TS-R Range (Tandem Semi – Recessed)

Model Tyres Pump Width A Length B Height C Diameter D Length L Unladen Litres
Litres mm mm mm mm mm kg litres
3000 TS-R 710/50 R26.5 Alliance 11000 2750 8500 3200 1886 (73”) 5540 7050 14030
3500 TS-R 710/50 R26.5 Alliance 11000 2750 9000 3200 1886 (73”) 6060 7350 15911
4000 TS-R 710/50 R26.5 Alliance 11000 2750 9000 3350 1993 (78”) 6060 7700 18866

TS-R Axle Specification

Product Axle Brake
3000 TS-R 150 x 150 420 x 180
3500 TS-R
 150 x 150 420 x 180
4000 TS-R
 150 x 150 420 x 180
